Radium Port Injection FST Install Kit w/Black DMR - Ford Focus EcoBoost LW/LZ 13-18
Radium Port Injection FST Install Kit w/Black DMR - Ford Focus EcoBoost LW/LZ 13-18 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
This comprehensive installation kit includes everything needed to install a Radium fuel surge tank with dual 39mm fuel pumps in a 2013+ Focus ST and 2015+ Focus RS. If not using port injection, consider the FST kit 20-0011 instead. More FST information can be found HERE.

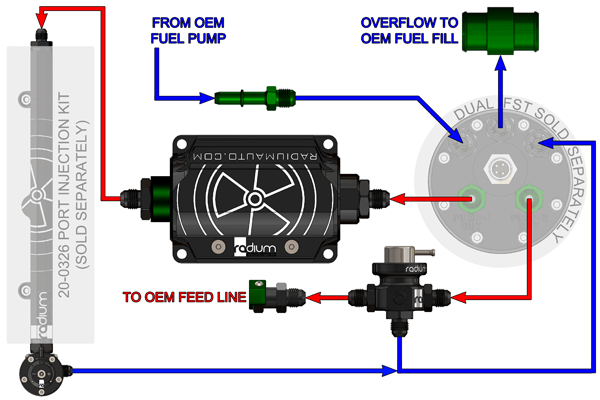

This system suits 2 fuel pumps in the surge tank. Each pump runs in a separate independent fuel system. One pump is used to replace and mimic the OEM fuel supply line and feed the OEM HPFP. The other pump is used to supply fuel to an aftermarket port (secondary) injection fuel rail. Both pumps are protected from fuel starvation as the OEM low pressure fuel pump(s) are redirected to supply fuel to the FST. Overflow fuel returns back into the OEM fuel filler hose with an included billet adapter.

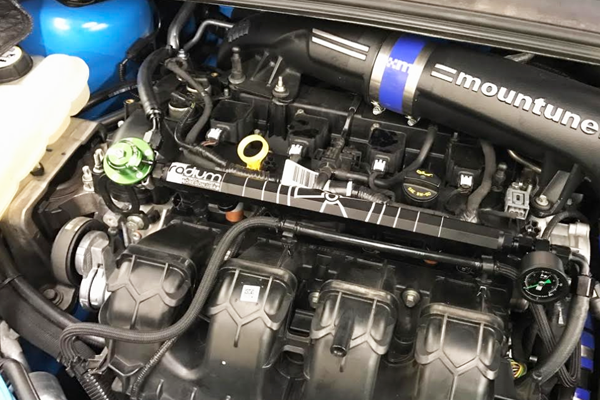

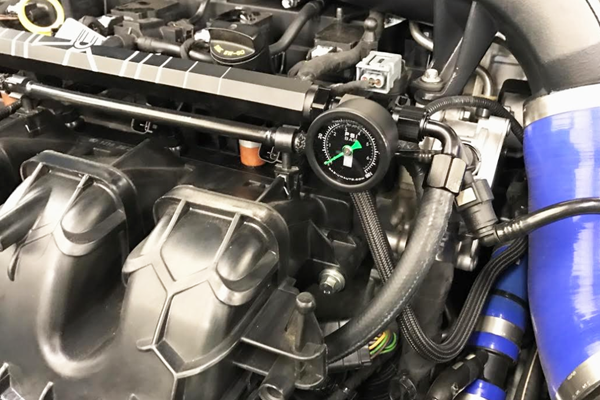

The new FST pump supplying the OEM HPFP is regulated with a non adjustable Radium FPR. This can be vacuum referenced if 1:1 fuel pressure is required or ran static to mimic the stock system. The new FST pump that supplies the separate port injection system routes fuel through a Radium cellulose filter. To regulate the port injection fuel, a Radium DMR (black or green) with an 8AN ORB inlet is included. This regulator will mount to most aftermarket port injection fuel rails including the fuel rail provided with Radium 20-0326.

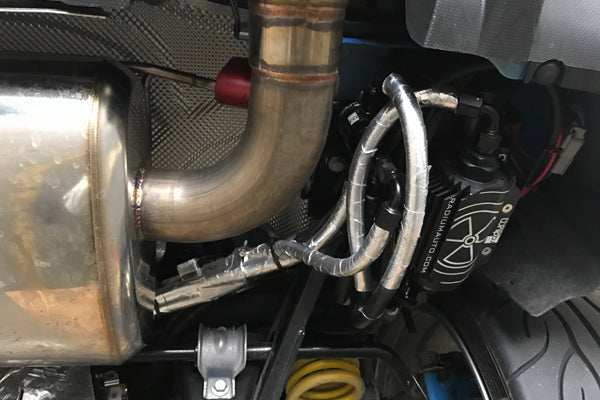

The MK3 Ford Focus install kit locates the FST in a collision-safe area under the vehicle, in front of the rear bumper support. The anodized aluminum bracket solidly mounts to OEM mounting points. Heat tape is included to reflect unwanted heat from the exhaust system, as shown.
Also included are wiring components with flying leads featuring Raychem solderless butt splices, and weatherproof fuse and relays to drive the FST fuel pumps. Wiring is very simple and takes less than 30 minutes to assemble. No soldering is required.

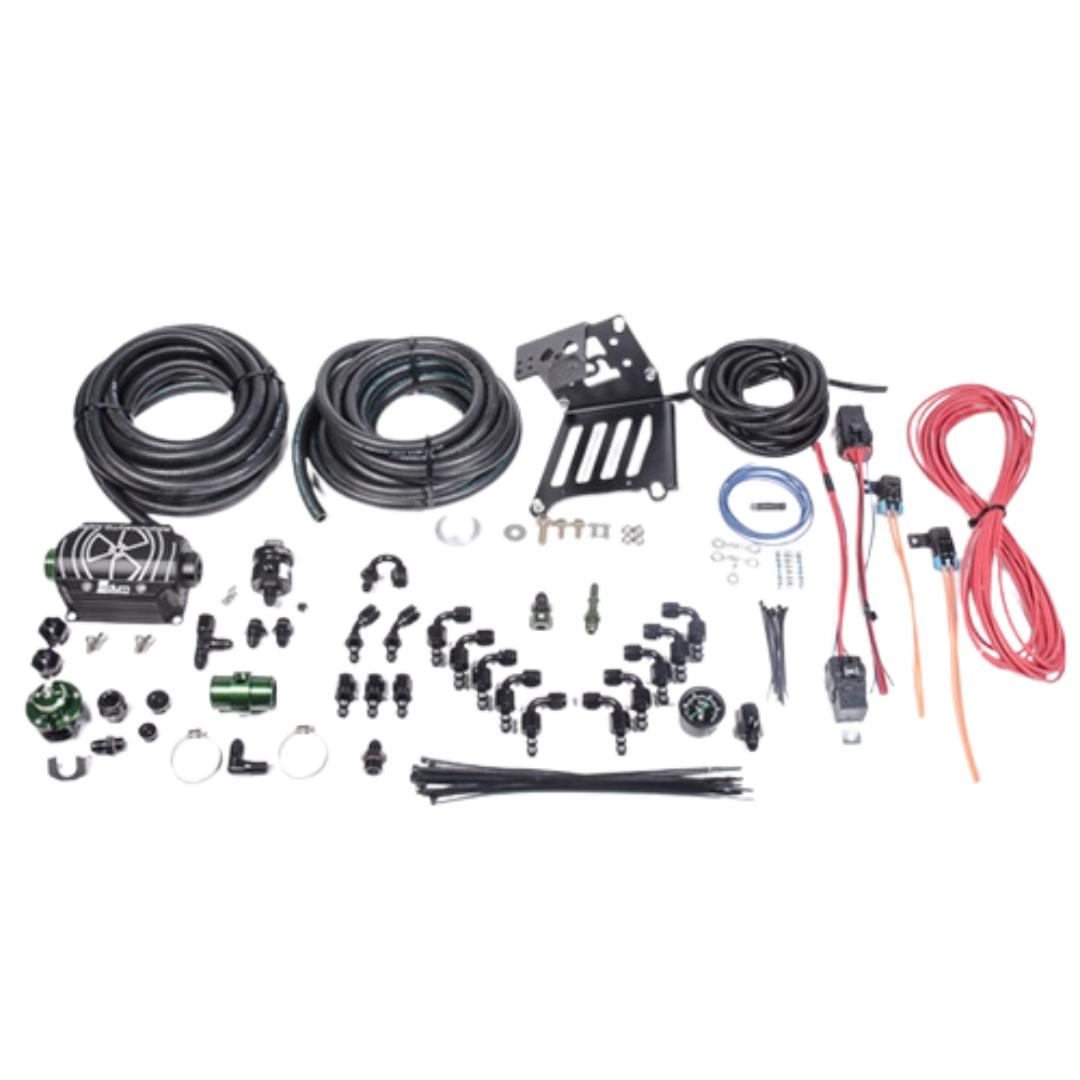

What is Included?
Black DMR Fuel Pressure Regulator, 8AN ORB
Fuel Pressure Regulator, Non Adjustable Bosch Top
10 Micron Cellulose Fuel Filter with Heat Exchanger
Aluminum MK3 Focus FST Mounting Bracket
Silicone-Filled Fuel Pressure Gauge
Aluminum Push Lok -6AN Hose Ends
AN and OEM Style Adapter Fittings
Vapor Shield 3/8" (-6AN) EFI Hose
Wiring Components with Relay and Fuse
Stainless Steel Hardware
What is Required?
Standard Dual Pump Fuel Surge Tank
Port Injection Kit and Fuel Injectors
