Radium Engineering  |  SKU: 20-0320

Radium Fuel Rail Kit - Ford Shelby GT500 S197 13-14

$475.29 AUD $536.41
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

This kit is compatible with the 2007-2014 (S197) Shelby GT500 with OEM returnless or aftermarket return fuel systems.

Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted.

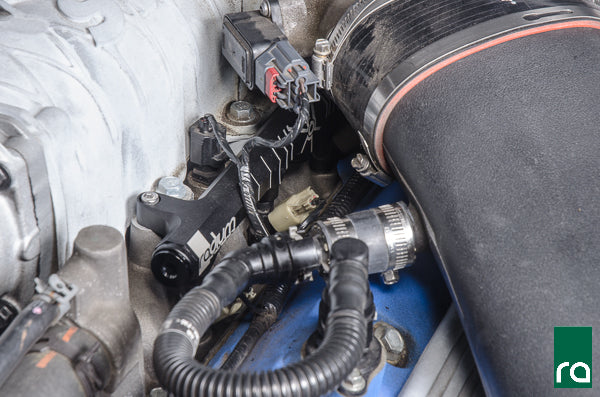

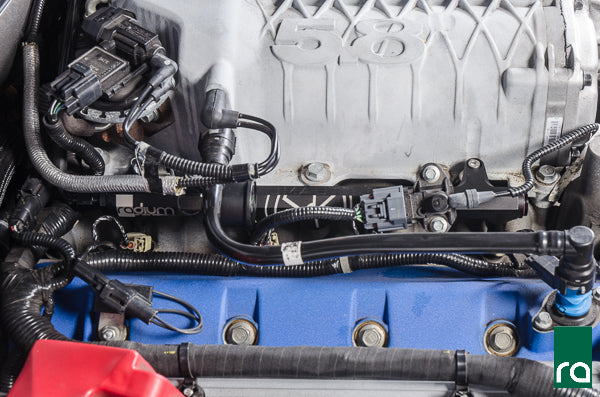

This kit offers a total of eight 3/4-16 (8AN ORB) threaded ports to allow plumbing of anciliary fuel system devices. In order to clear the supercharger's intake pipe, the LH fuel rail (shown above) features three ports. The lower center port for both rails are most commonly used for Radium Engineering fuel pulse dampers. The RH fuel rail (shown below) features all the ports from the LH side fuel rail with the addition of two top ports (5 total). The top front port is for the provided adapter that is used to mount the OEM fuel pressure sensor. The top rear port is commonly used for aftermarket fuel pressure monitoring.

This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

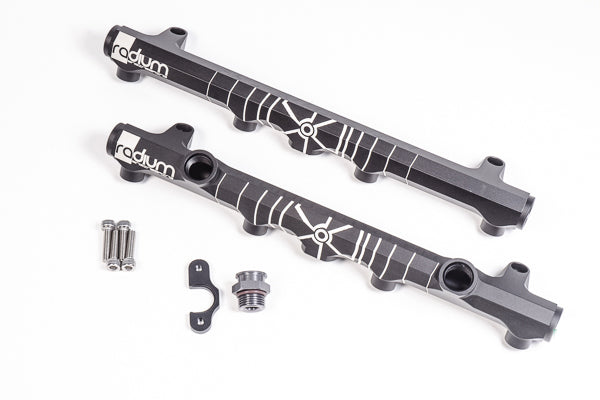

INCLUDED:

Black Anodized Laser Etched Aluminum Fuel Rails, RH
Black Anodized Laser Etched Aluminum Fuel Rail, LH
Ford Fuel Pressure Sensor 8AN ORB Adapter Fitting
Stainless Steel Mounting Bolts (x4)
