Radium Coolant Expansion Tank Kit - Ford Shelby GT500 S197 13-14
Radium Coolant Expansion Tank Kit - Ford Shelby GT500 S197 13-14 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

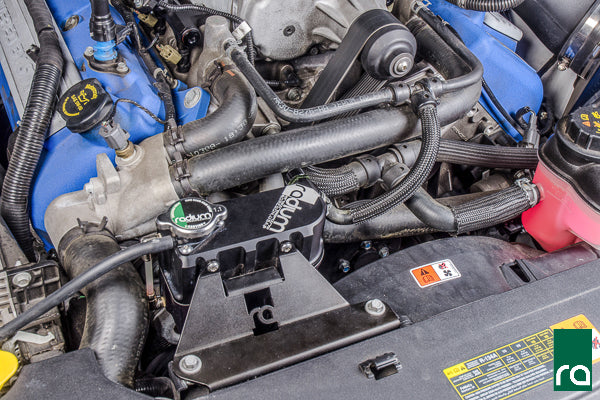

These kits are for the Ford Mustang Shelby GT500. It is designed to replace the plastic coolant tank found at the front of the engine bay.

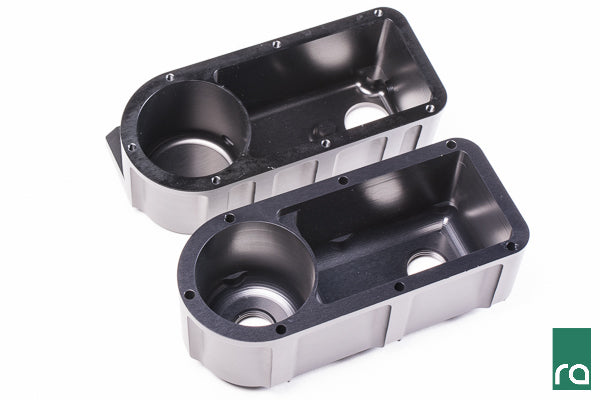

The Radium Engineering coolant expansion tank is CNC machined from aluminum and consists of two halves that are bolted together.
The low-profile design allows extra room in the engine bay for aftermarket forced induction or other modifications. The internal design features two chambers that are NOT isolated from each other. There are cross-over passages at the top and bottom. The Radium Engineering coolant header tank also has an internal swirl feature, which is to help aid in deaerating the system. For more details on the coolant tank, click HERE.
The kits include all parts necessary for installation. No permanent vehicle modifications are required.

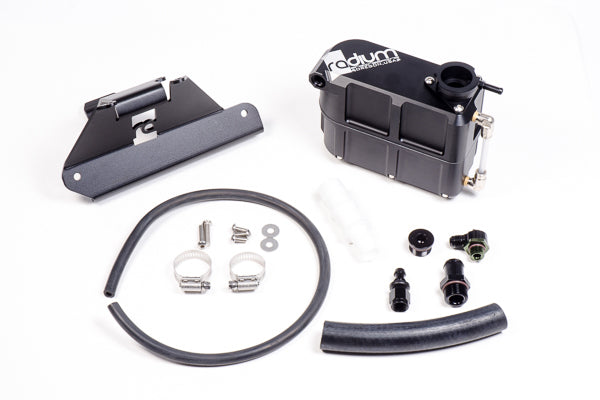

Included
Billet Aluminum Coolant Tank
Anodized Aluminum Mounting Bracket
Stainless Steel Hardware
Adapter Fittings
Reaplcement Heater Hose
Overflow Hose, 7/32"
*PRESSURE CAP SOLD SEPARATELY*
Pressure Cap
The OEM Pressure Cap cannot be reused. Below are the pressure ratings from Ford.
Mustang, S550: 1.45 Bar (21 psi)
Mustang, S197: 1.10 Bar (16 psi)
Shelby GT500: 1.10 Bar (16 psi)
The optional Radium Engineering pressure caps (sold separately) are manufactured from stainless steel with a race proven high pressure valve. An increase pressure relief cap provides a boiling point increase permitting improved cooling efficiency. This is necessary when tracking the vehicle in extreme conditions.
