Radium Engineering  |  SKU: 20-0232

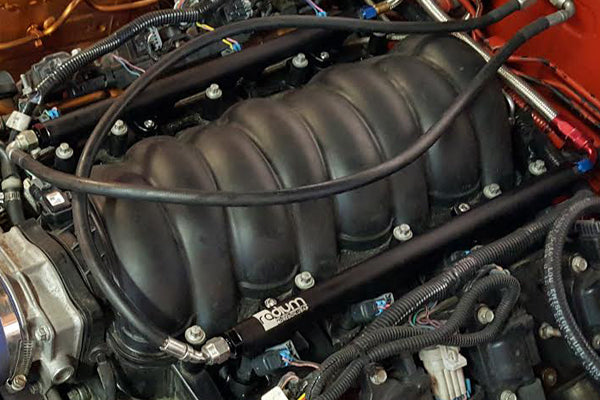

Radium Fuel Rails - GM LS Engine

$389.93 AUD $441.35
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

Manufactured with a large 0.69" internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. All end ports are machined with 8AN ORB (3/4-16 female) threads. The lower center ports can be used for optional adapters and are also tapped with 8AN ORB (3/4-16 female) threads.

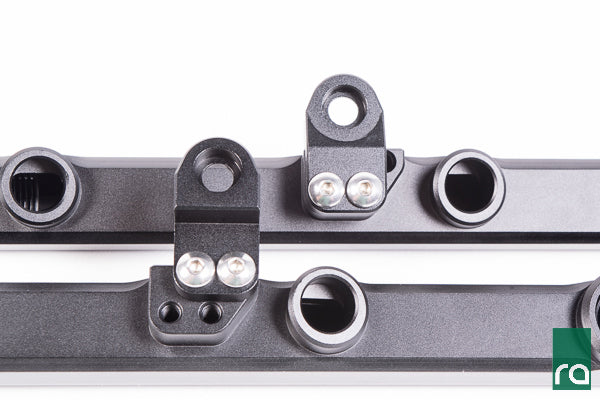

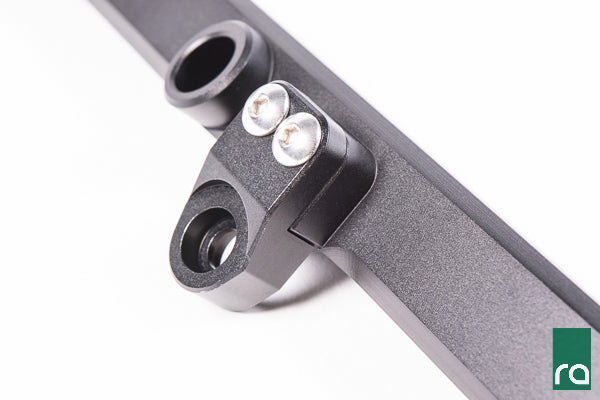

The kit features specifically designed billet mounts. These modular "feet" allow compatibility on the following GM LS engines by simply flipping them and reinstalling into different threaded holes on the rails: LS1, LS2, LS3, LS6, L76, L99 Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

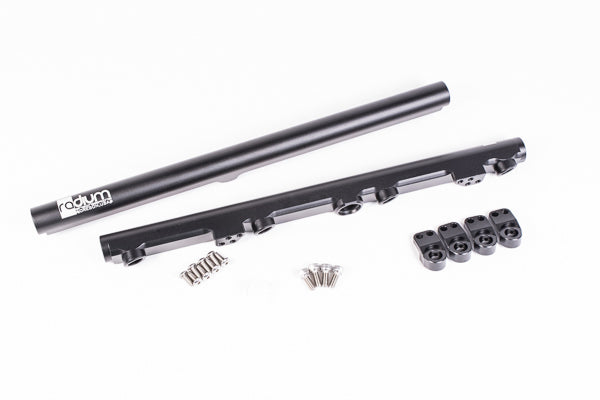

INCLUDED:

Black Anodized Laser Etched Aluminum Fuel Rails (x2)
Black Anodized Aluminum Mounting Feet (x4)
Stainless Steel Mounting Feet Hardware (x8)
Stainless Steel Replacement Mounting Bolts (x4)
