Radium High Flow Fuel Filter- Stainless - 10 Micron

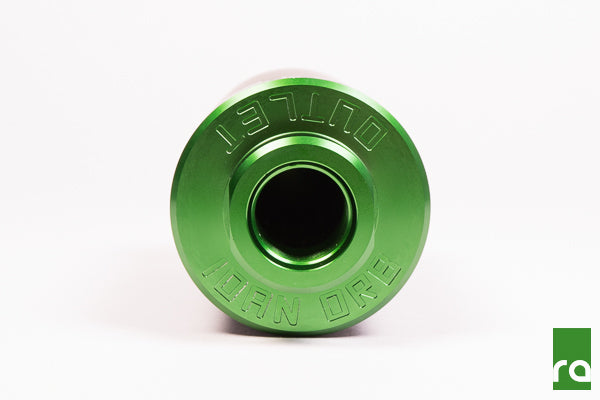

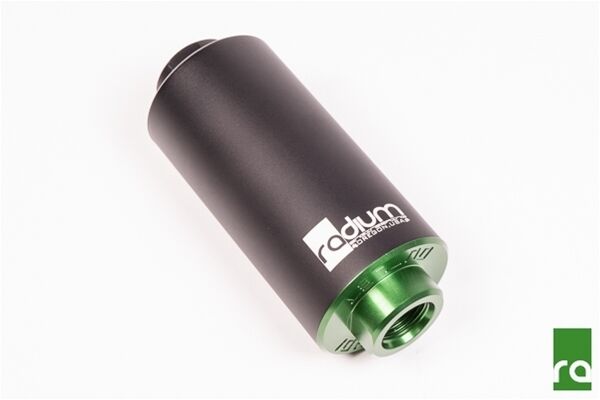

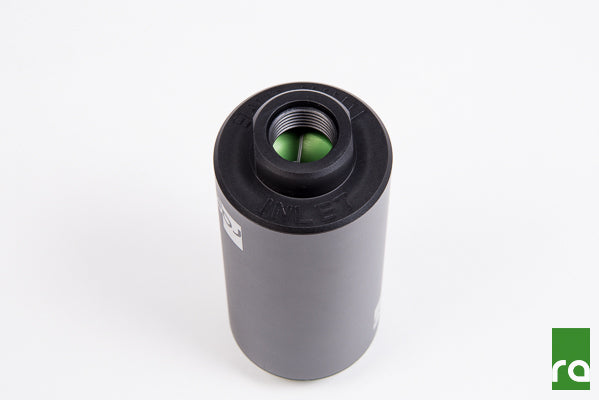

The Radium Engineering high flow fuel filter has a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing.
The fuel filter comes preassembled with Viton O-ring seals for all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.

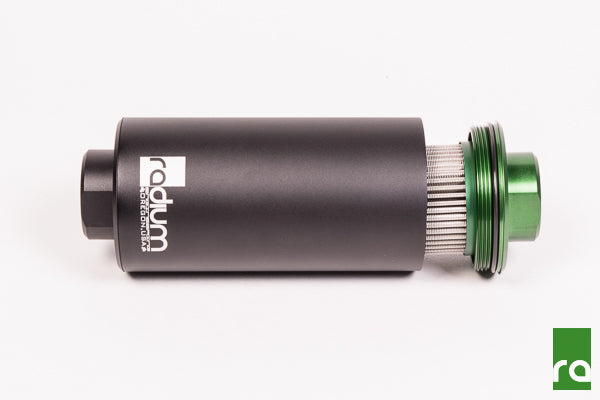

The filter features a large 4.2"x1.75" element maximizing flow without sacrificing filtration. The large elements also hold a lot of contaminants without becoming a restriction, resulting in a very long service life.
SELECTION GUIDE
The Radium High Flow Fuel Filter is available with different filtration elements. Each option is discussed below.
The BOSCH fuel filtration specification states:
"Recommended filter quality: nominal rating 5um, minimum 82% capture efficiency according to ISO/TR 19438; dirt particles > 35um are not permissible."
The Radium Engineering 18-0025-05 element (from 20-0220-05 filter) has a capture efficiency of 99.9% at 6 micron.
FLOW DATA
The chart belows shows the results of Radium's in-house flow testing of the fuel filters. The pressure drop was found by measuring the inlet and outlet pressures at different flow rates.
MOUNTING OPTIONS - SOLD SEPARATELY
20-0221 1pc Clamp, 60mm, Heat Exchanger
With engine power levels globally increasing, pump heat is fast becoming an issue in fuel systems. This custom extrusion includes cooling fins that help dissipate heat. The conductive 6063 aluminum design directly clamps to the fuel filter body with 2 countersink stainless steel screws. For maximum efficiency, this unit must be mounted in a location where cool air can pass through the cooling fins, such as underneath the vehicle. Four M6x1mm stainless steel screws are included for mounting to the chassis. The unit is bright-dip anodized black with a laser engraved design.
20-0122 2pc Clamp, 60mm, Dual
This 6061 billet aluminum clamp is designed specifically for 2 filters (or 1 filter and 1 Bosch 044 pump). A stainless steel M8 bolt and lock nut is included. This clamp must be mounted to a flat surface. The clamps are bright-dip anodized Radium green with laser engraved logos.
20-0218 2pc Clamp, 60mm, Single
This 6061 billet aluminum 2-piece clamp consists of two halves that grip the filter body. Three stainless steel M5 bolts are used to mount the clamp to the vehicle and two additional screws are used to secure the clamp halves together. The clamp is bright-dip anodized black with a CNC engraved logo.
