Radium Engineering  |  SKU: 20-0196

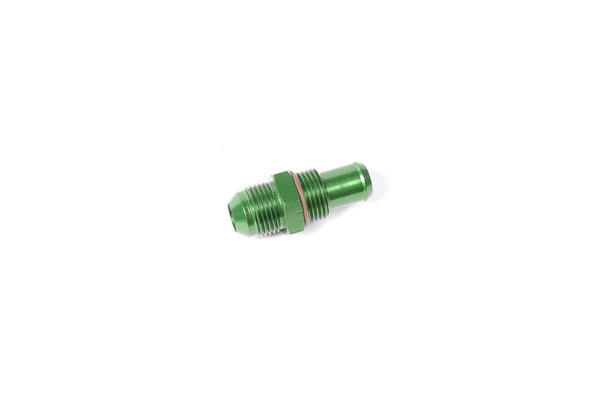

Radium AN ORB Fuel Surge Tank Bulkhead Fittings- 10AN ORB 10AN Male to 5/8" Barb (15.9mm)

$33.94 AUD $37.83
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

Bright-dipped green anodized aluminum bulkhead fittings.

NOTES:

The 20-0170 5/16" Barb to 6AN Bulkhead Fitting was introduced in Radium Fuel Surge Tanks after 2014. It includes a preassembled Viton O-ring and requires a 9/16-18 threaded hole with chamfer to be drilled into the mating part for sealing.
The 20-0196 5/8" Barb to 10AN Bulkhead Fitting was introduced in Radium High Volume Fuel Surge Tanks in 2015. It includes a preassembled Viton O-ring and requires a 7/8-14 threaded hole with chamfer to be drilled into the mating part for sealing.
