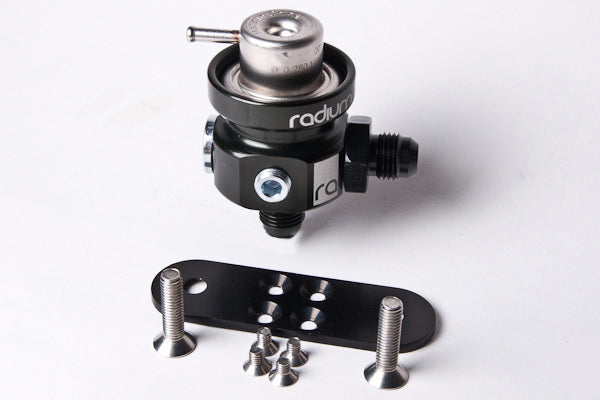

Radium Fuel Pressure Regulator- Include Bosch Regulator Top, 3.0 Bar
Radium Fuel Pressure Regulator- Include Bosch Regulator Top, 3.0 Bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Radium Fuel Pressure Regulator- Include Bosch Regulator Top, 3.0 Bar
**This product is not recommended for fuel pumps with more than 255 LPH (at 3 Bar) rated flow**
This universal Radium Fuel Pressure Regulator (FPR) is built around the common OEM Bosch regulator tops. These Bosch units are found in many applications, including:
Audi 1.8L Turbo
Ford Falcon BA, BF, FG XR6 Turbo
Ford Territory Turbo
FPV F6 Typhoon Turbo
Volkswagen 1.8L Turbo
Alternatively, Radium offers two GENUINE Bosch regulator tops: 3.0 Bar (43.5 psi) static and 4.0 Bar (58.2 psi) static. These Bosch regulator tops are vacuum referenced with a 1:1 ratio and are NOT adjustable.

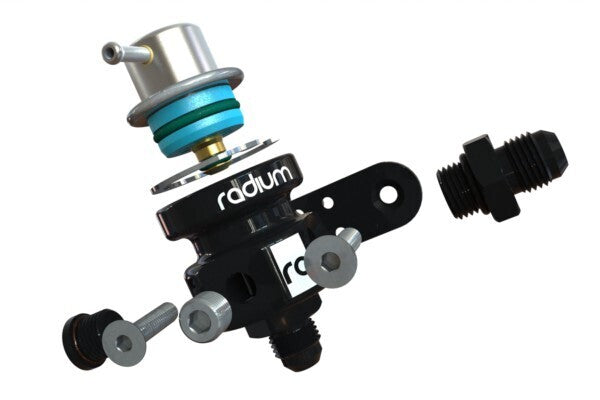

The compact Radium Engineering billet aluminum FPR housing provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. The two main high pressure ports are threaded for 6AN ORB. The 6AN male return port is integrated into the housing. There is also a 1/8 NPT female port for a gauge, pressure transducer, etc. Each FPR housing is laser etched and anodized for a superior finish.
NOTE: The exact min, static, and max pressures are influenced by the flow rate of the fuel pump being used. These FPRs are tested using a common Walbro 255lph pump. If a higher flowing pump is used, the minimum pressure ratings may be higher than advertised. For applications with more pump flow, consider a high flow fuel pressure regulator.
INCLUDES
Billet 6061 Aluminum Housing
6AN Male Adapter Fitting
6AN ORB Plug Fitting
1/8-27 NPT Port Plug
Integrated -6AN Male Return Port
Stainless Steel Mounting Hardware
Stainless Steel Snap Retaining Ring
Anodized Aluminum Mounting Bracket
OPTIONS
20-0114

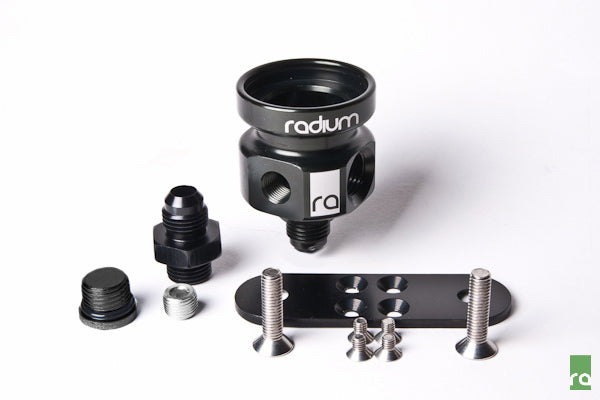

If a regulator top is not needed (already have one from another source), select Radium 20-0014. This option includes everything needed with the exception of the regulator top.
20-0010-00 and 20-0010-01
These come assembled with the Bosch regulator unit installed in the housing.
