Radium Engineering  |  SKU: 17-0014

Radium Fuel Surge Tank Wiring Harness - Flying Leads w/Connector (External Dual Pump)

$114.32 AUD $130.95
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

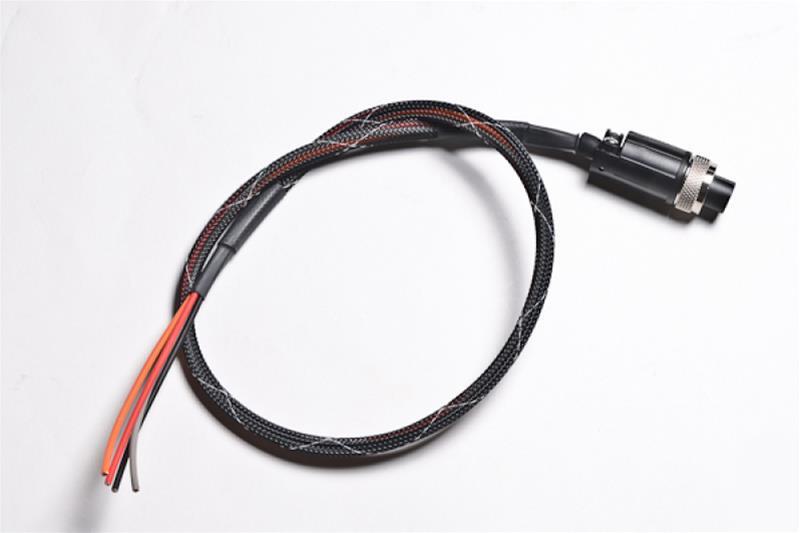

These wiring harnesses are used in multiple Radium Engineering products including fuel surge tanks, fuel cells, etc. For a complete bulkhead mating connection, select one internal and one external harness from the lists above. External harness wires use 24" long 10AWG TXL insulated wires. Internal harness use 12-14AWG PTFE insulated wires.

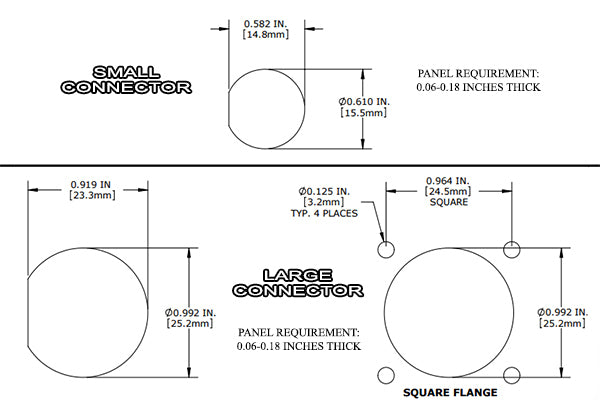

All panels must be 0.06-0.18 inches thick. See the drawing above for cutouts for each bulkhead connector. A gasket is included on the large connector and the small connector includes an O-ring for sealing against panel surface.

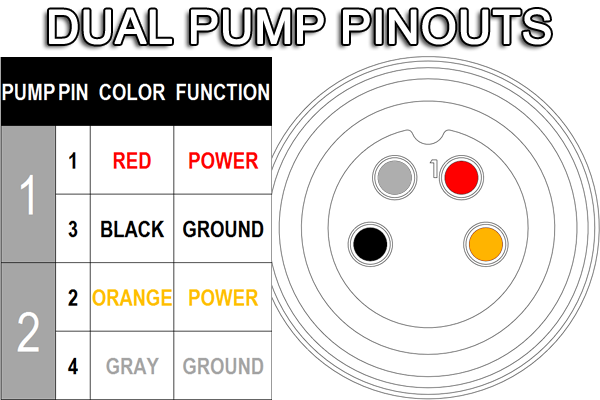

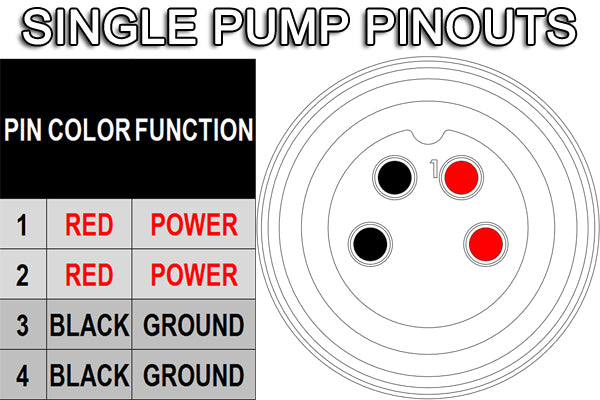

If wiring a connector to a Radium Engineering internal harness, the pinouts are above.
