Radium Engineering  |  SKU: 14-0484

Radium Phenolic Insulating Spacers/Washers- M8 Washer

$7.62 AUD $8.73
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

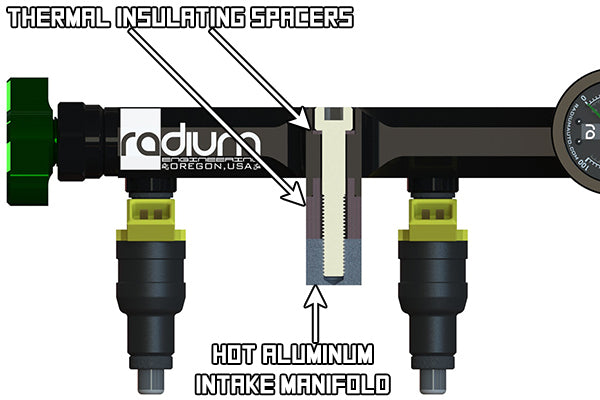

These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine.

NOTES:

These are sold individually. Double check how many are required prior to purchasing.
Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.
SPACER SPECIFICATIONS:

Material: Phenolic Resin
Outer Diameter: 19mm
Inner Hole Diameter: 9.6mm
Press-Fit Outer Diameter: 14.2mm
Press-Fit Insert Length: 6.4mm
Max Temperature: 265F
Tensile Strength: 17,000psi
WASHER SPECIFICATIONS:

Material: Phenolic Resin
Outer Diameter: 14.5mm
Inner Hole Diameter: 8.1mm
Washer Thickness: 1.3mm
Max Temperature: 265F
