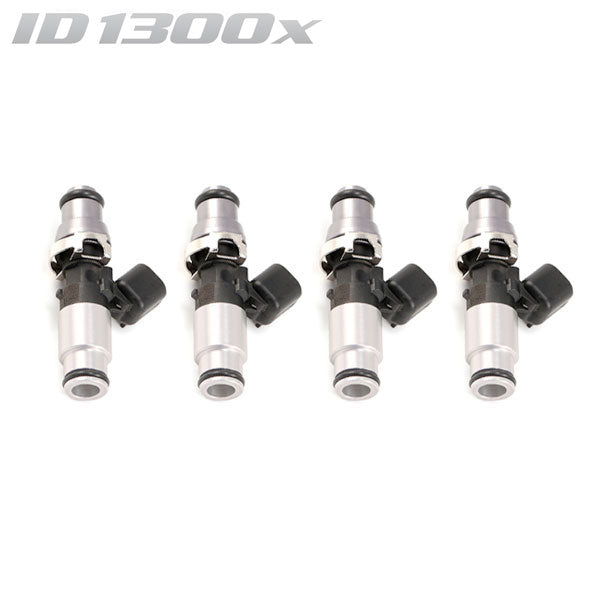

Injector Dynamics ID1300-XDS Direct Fit Injectors Set of 4- VW/Audi/Mazda NC MX-5

Description
The ID1300x is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300x was designed with alternative fuels in mind, and was originally the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.

While the ID1300x was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300x has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300x allows fitment in 200+ applications, making it the most versatile injector in our lineup.

Features:
Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
Improved internal flow path increases output by 5% without sacrificing low flow performance.
Stronger magnetic circuit offers stable operation up to 10 bar.
Replaceable inlet filter extends service life.

Vehicle Fitment:

Yamaha YXZ1000 (Includes R) - reuse OE lower cushion

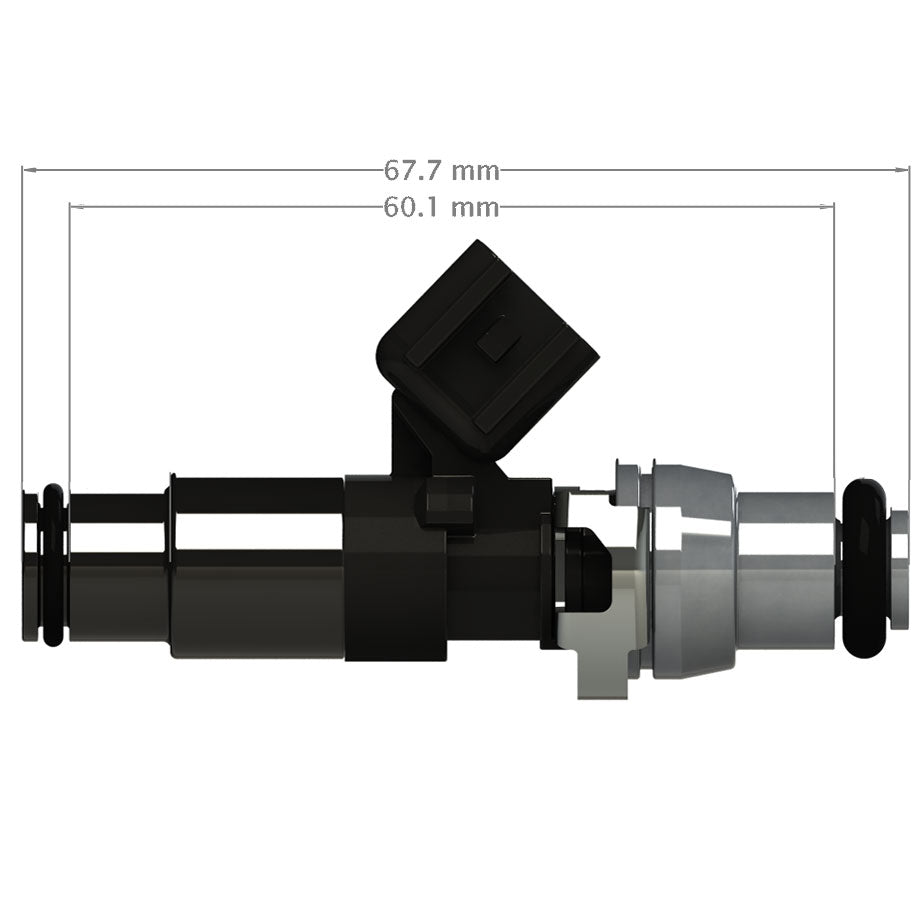

Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Technical Specifications
Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
Fuel Compatibility: Compatible With All Known Fuels (Designed Specifically for Alternative Fuels)
Electrical Connector: USCAR

Fitment Table
Year
Make
Model
Chassis
Submodel

1997 - 2000
Audi
A3
8L (2D Hatch)
1.8 Turbo - AGU 1.8L Turbo Petrol FWD (110kW)

2000 - 2003
Audi
A3
8L (4D Hatch)
1.8 Turbo - AUM 1.8L Turbo Petrol FWD (110kW)

2008
Audi
A3
8P (2D Convertible)
1.8 TFSI - BZB 1.8L Turbo Petrol FWD (118kW)

2008 - 2013
Audi
A3
8P (2D Convertible)
1.8 TFSI - CDAA 1.8L Turbo Petrol FWD (118kW)

2007 - 2008
Audi
A3
8P (2D Hatch)
1.8 TFSI Ambition - BYT 1.8L Turbo Petrol FWD (118kW)

2007 - 2008
Audi
A3
8P (2D Hatch)
1.8 TFSI Ambition - BZB 1.8L Turbo Petrol FWD (118kW)

2008 - 2010
Audi
A3
8P (2D Hatch)
1.8 TFSI Ambition - CDAA 1.8L Turbo Petrol FWD (118kW)

2007 - 2008
Audi
A3
8P (4D Hatch)
Sportback 1.8 TFSI Ambition - BZB 1.8L Turbo Petrol FWD (118kW)

2008 - 2013
Audi
A3
8P (4D Hatch)
Sportback 1.8 TFSI Ambition - CDAA 1.8L Turbo Petrol FWD (118kW)

2013 - 2016
Audi
A3
8V (4D Hatch)
Sportback 1.8 TFSI Ambition - CJSA 1.8L Turbo Petrol FWD (132kW)

2013 - 2016
Audi
A3
8V (4D Hatch)
Sportback 1.8 TFSI Quattro Attraction - CJSB 1.8L Turbo Petrol AWD (132kW)

2000 - 2002
Audi
S3
8L (2D Hatch)
1.8 - AMK 1.8L Turbo Petrol AWD (154kW)

1999 - 2000
Audi
S3
8L (2D Hatch)
1.8 - APY 1.8L Turbo Petrol AWD (154kW)

2002 - 2003
Audi
S3
8L (2D Hatch)
1.8 - BAM 1.8L Turbo Petrol AWD (165kW)

2005 - 2015
Mazda
MX-5
NC (2D Roadster)
Base - L8DE 1.8L Aspirated Petrol RWD (93kW)

2005 - 2015
Mazda
MX-5
NC (2D Roadster)
Base - LFDE 2.0L Aspirated Petrol RWD (118kW)

1997 - 2005
Volkswagen
Golf
Mk4 (4D Hatch)
GTi - AGU 1.8L Turbo Petrol FWD (110kW)

2005 - 2007
Volkswagen
Golf
Mk5 (2D Hatch)
GTi - AXX 2.0L Turbo Petrol FWD (147kW)

2006 - 2009
Volkswagen
Golf
Mk5 (2D Hatch)
GTi - BWA 2.0L Turbo Petrol FWD (147kW)

2006 - 2009
Volkswagen
Golf
Mk5 (2D Hatch)
GTi Pirelli - BYD 2.0L Turbo Petrol FWD (169kW)

2005 - 2009
Volkswagen
Golf
Mk5 (4D Hatch)
GTi - BWA 2.0L Turbo Petrol FWD (147kW)

2006 - 2009
Volkswagen
Golf
Mk5 (4D Hatch)
GTi Pirelli - BYD 2.0L Turbo Petrol FWD (169kW)

2005 - 2009
Volkswagen
Golf
Mk5 (4D Wagon)
GTi - BWA 2.0L Turbo Petrol FWD (147kW)

2013
Volkswagen
Golf
Mk6 (2D Convertible)
GTi - CCZB 2.0L Turbo Petrol FWD (155kW)

2009 - 2013
Volkswagen
Golf
Mk6 (2D Hatch)
GTi - CCZB 2.0L Turbo Petrol FWD (155kW)

2010 - 2011
Volkswagen
Golf
Mk6 (2D Hatch)
R - CDLC 2.0L Turbo Petrol AWD (188kW)

2009 - 2013
Volkswagen
Golf
Mk6 (4D Hatch)
GTi - CCZB 2.0L Turbo Petrol FWD (155kW)

2011 - 2012
Volkswagen
Golf
Mk6 (4D Hatch)
GTi Edition 35 - CDLG 2.0L Turbo Petrol FWD (173kW)

2010 - 2013
Volkswagen
Golf
Mk6 (4D Hatch)
R - CDLC 2.0L Turbo Petrol AWD (188kW)

2014 - 2017
Volkswagen
Golf
Mk7 (4D Hatch)
GTi - CHHA 2.0L Turbo Petrol FWD (169kW)

2013 - 2017
Volkswagen
Golf
Mk7 (4D Hatch)
GTi - CHHB 2.0L Turbo Petrol FWD (162kW)

2016 - 2017
Volkswagen
Golf
Mk7 (4D Hatch)
GTi - CXDA 2.0L Turbo Petrol FWD (162kW)

2016 - 2017
Volkswagen
Golf
Mk7 (4D Hatch)
GTi 40 Years - CJXE 2.0L Turbo Petrol FWD (195kW)

2013 - 2017
Volkswagen
Golf
Mk7 (4D Hatch)
R - CJXB 2.0L Turbo Petrol AWD (206kW)

2015 - 2016
Volkswagen
Golf
Mk7 (4D Wagon)
R Wolfsburg - CJXB 2.0L Turbo Petrol AWD (206kW)

2018
Volkswagen
Golf
Mk7.5 (2D Hatch)
GTi Original - CHHA 2.0L Turbo Petrol FWD (169kW)

2017 - 2021
Volkswagen
Golf
Mk7.5 (4D Hatch)
GTi - CHHA 2.0L Turbo Petrol FWD (169kW)

2017 - 2021
Volkswagen
Golf
Mk7.5 (4D Hatch)
GTi - CXDA 2.0L Turbo Petrol FWD (162kW)

2017 - 2021
Volkswagen
Golf
Mk7.5 (4D Hatch)
GTi - DLBA 2.0L Turbo Petrol FWD (180kW)

2020 - 2021
Volkswagen
Golf
Mk7.5 (4D Hatch)
GTi TCR - CJXH 2.0L Turbo Diesel FWD (213kW)

2017 - 2021
Volkswagen
Golf
Mk7.5 (4D Hatch)
R - CJXD 2.0L Turbo Petrol AWD (213kW)

2017 - 2021
Volkswagen
Golf
Mk7.5 (4D Hatch)
R - DJHB 2.0L Turbo Petrol AWD (213kW)

2017 - 2021
Volkswagen
Golf
Mk7.5 (4D Wagon)
R - DJHB 2.0L Turbo Petrol AWD (213kW)
