034Motorsport  |  SKU: 034-509-1035

034Motorsport | Billet Aluminum Upper Dogbone Mount Insert (Audi/VW MQB)

$70.00
Shipping calculated at checkout.

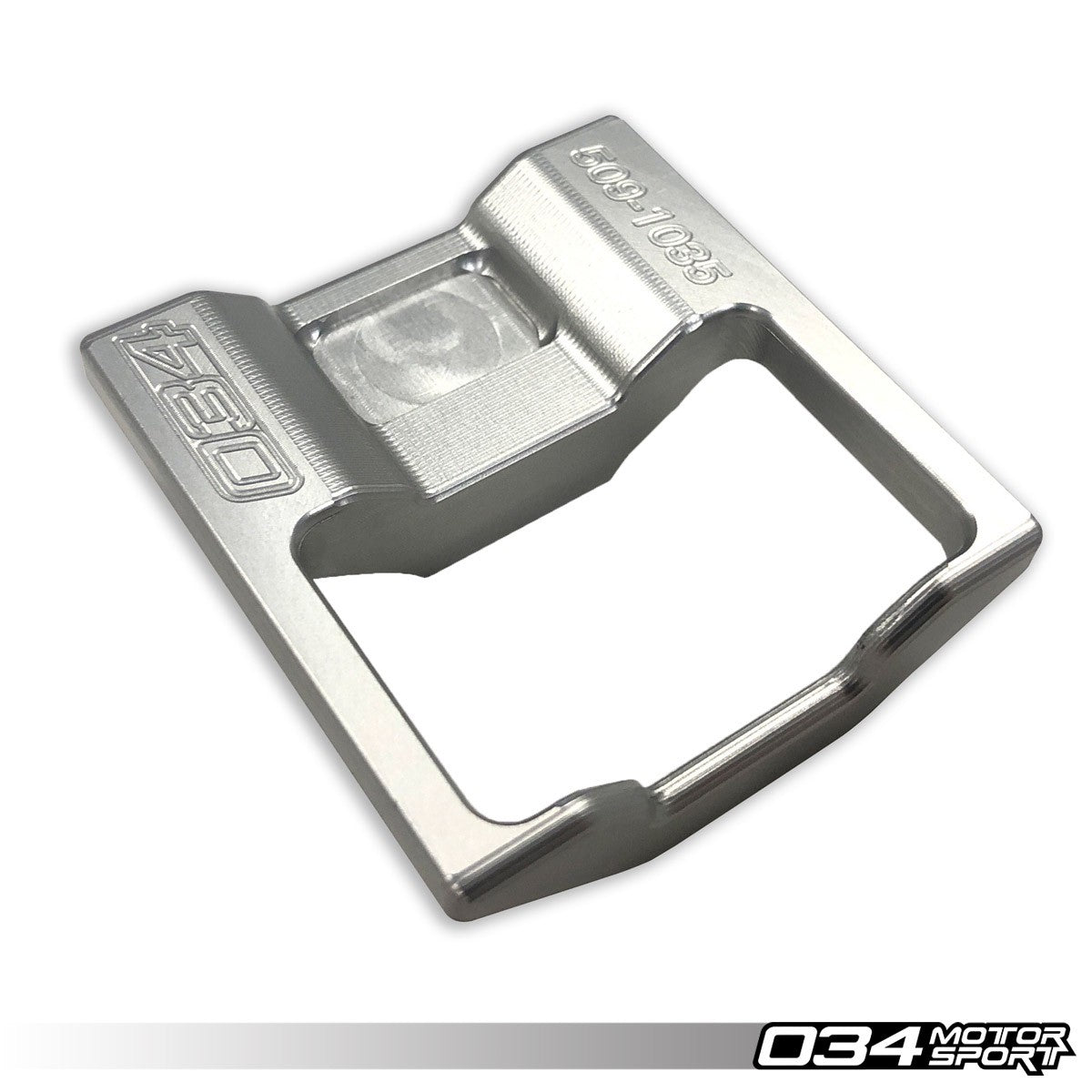

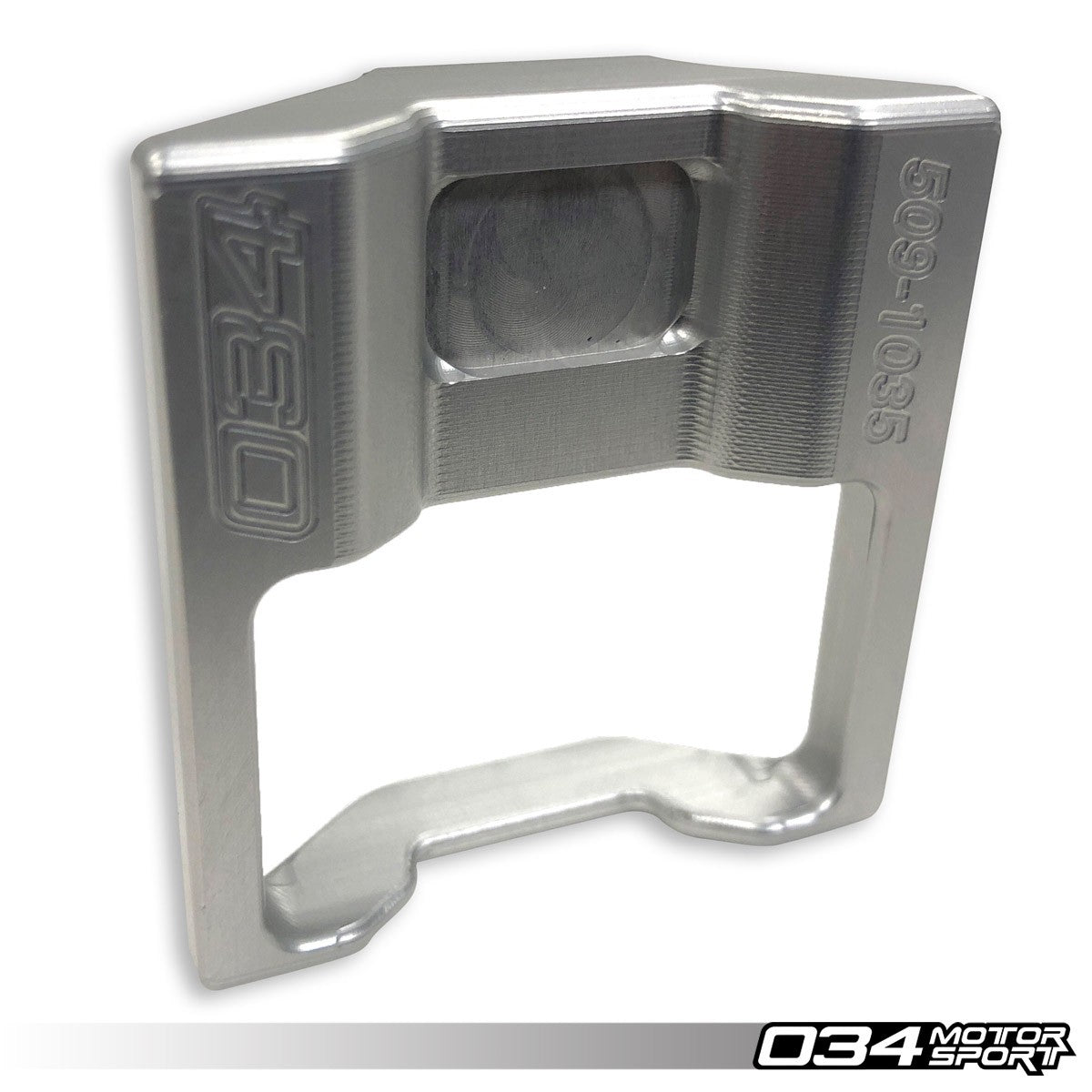

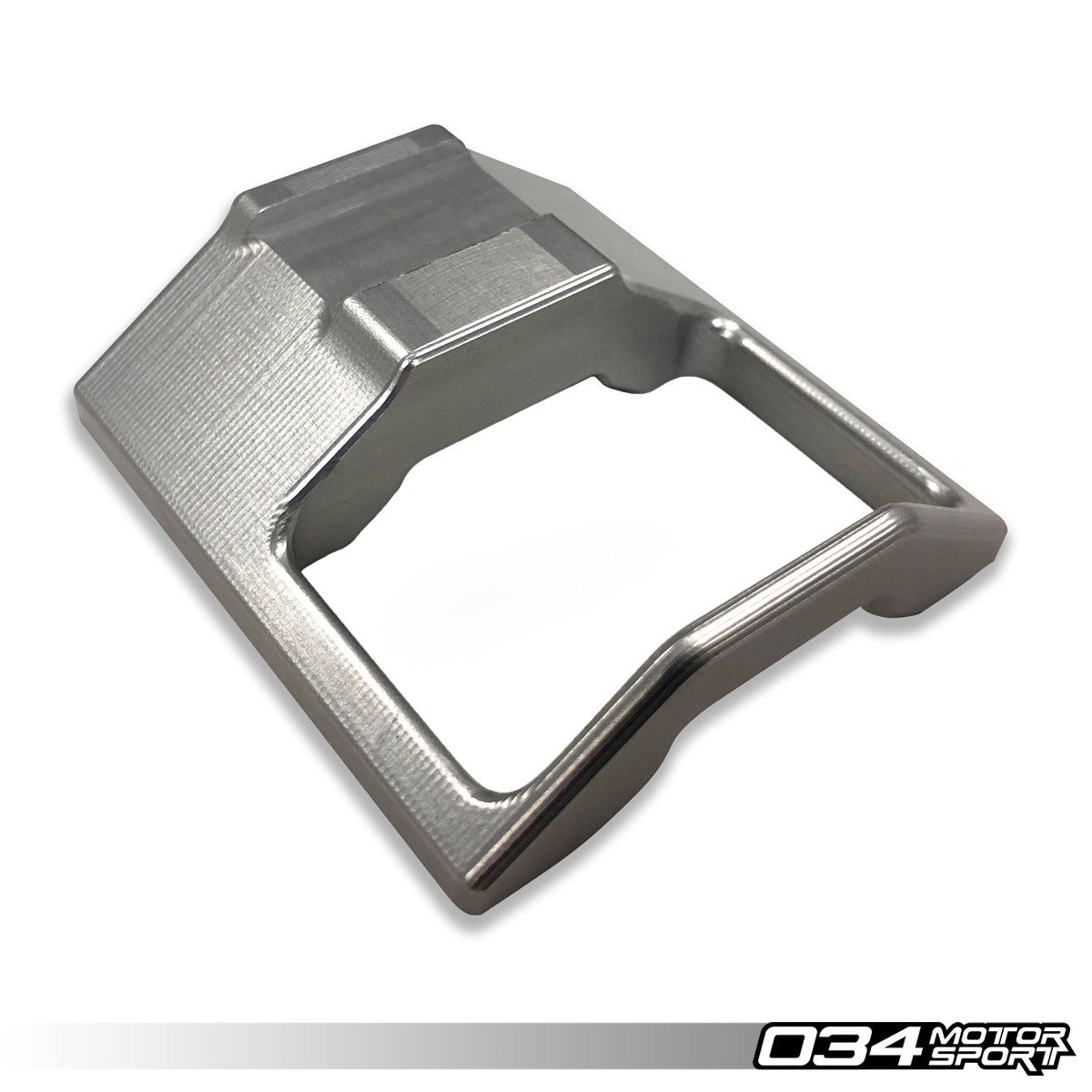

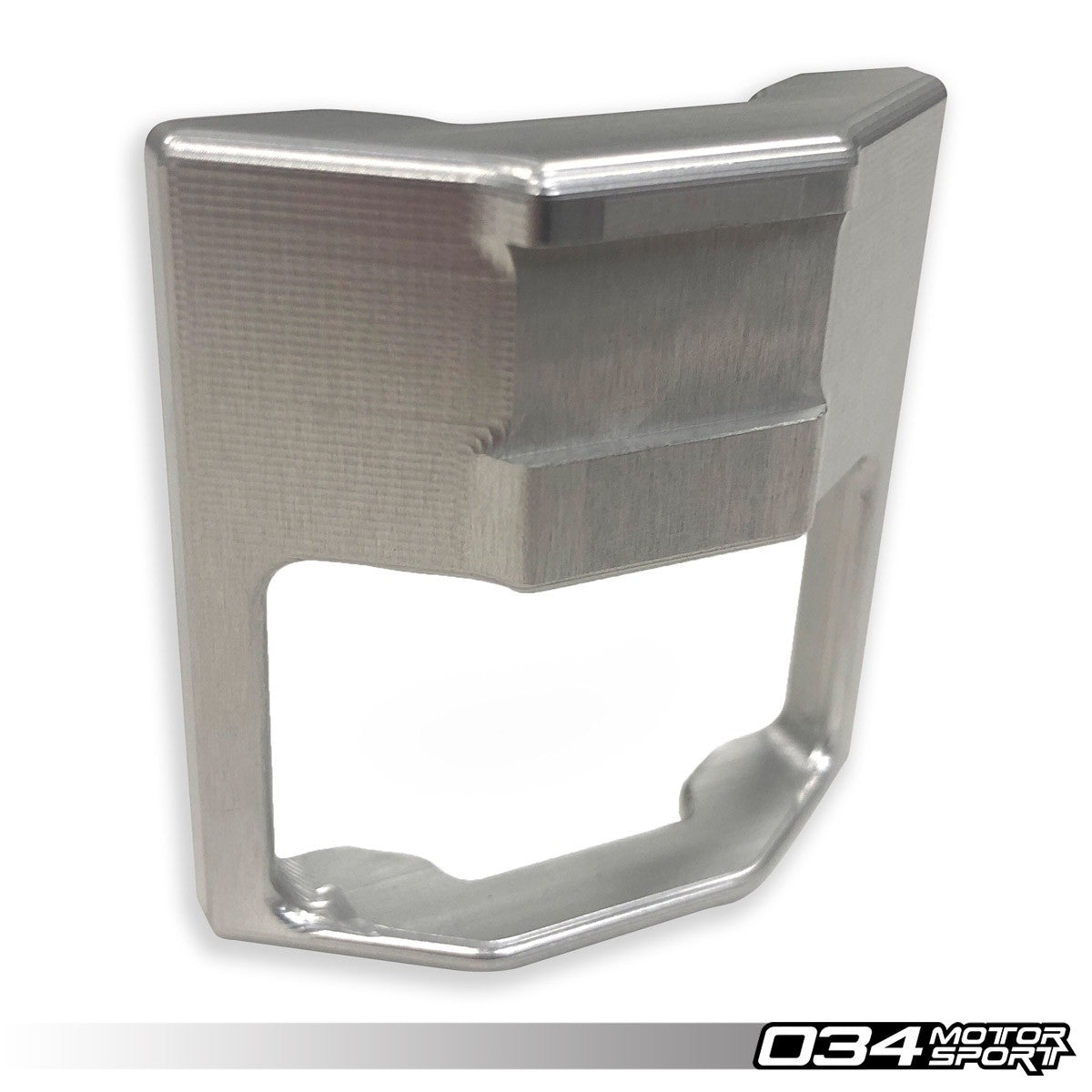

Billet Aluminum Upper Dogbone Mount Insert (Audi/VW MQB Platform)

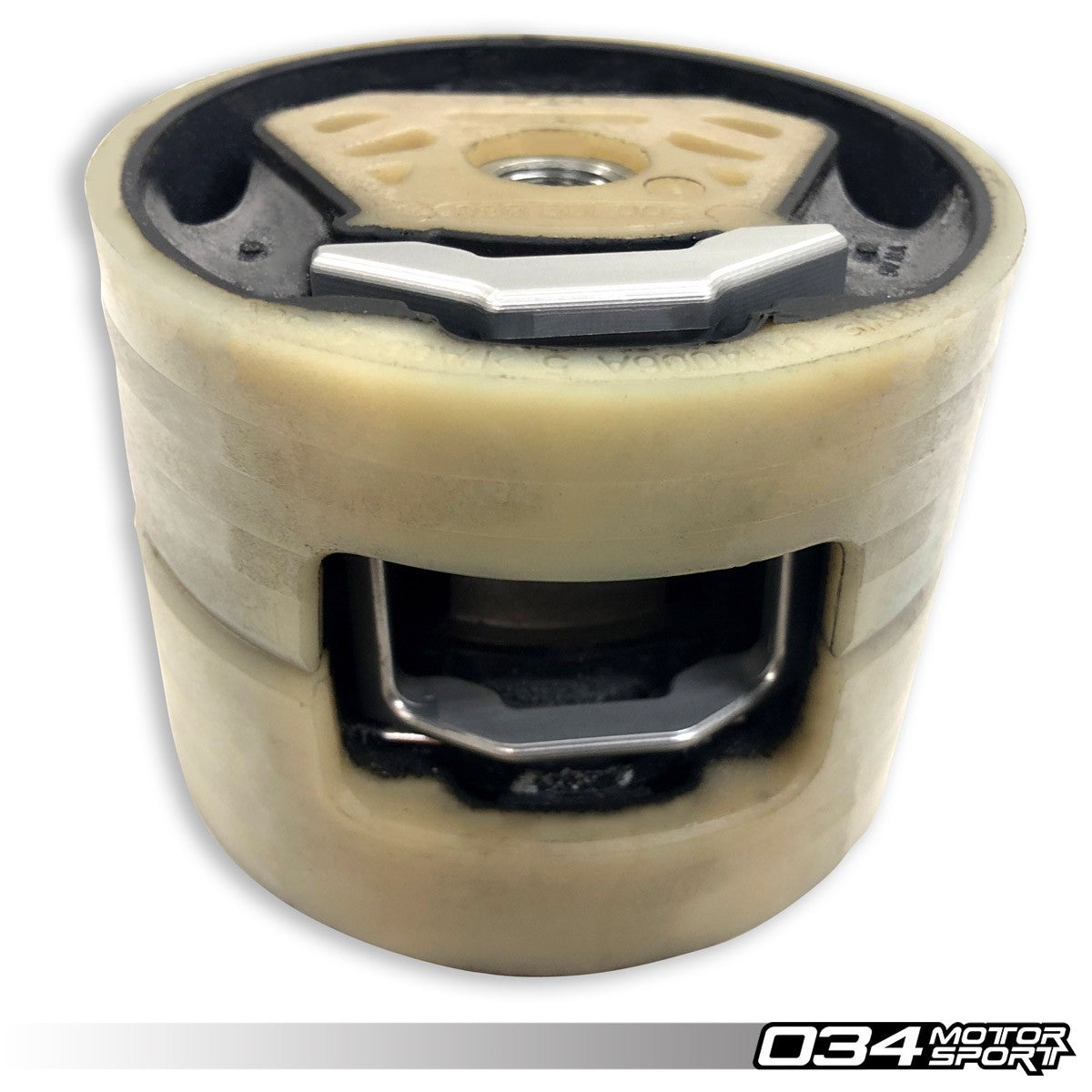

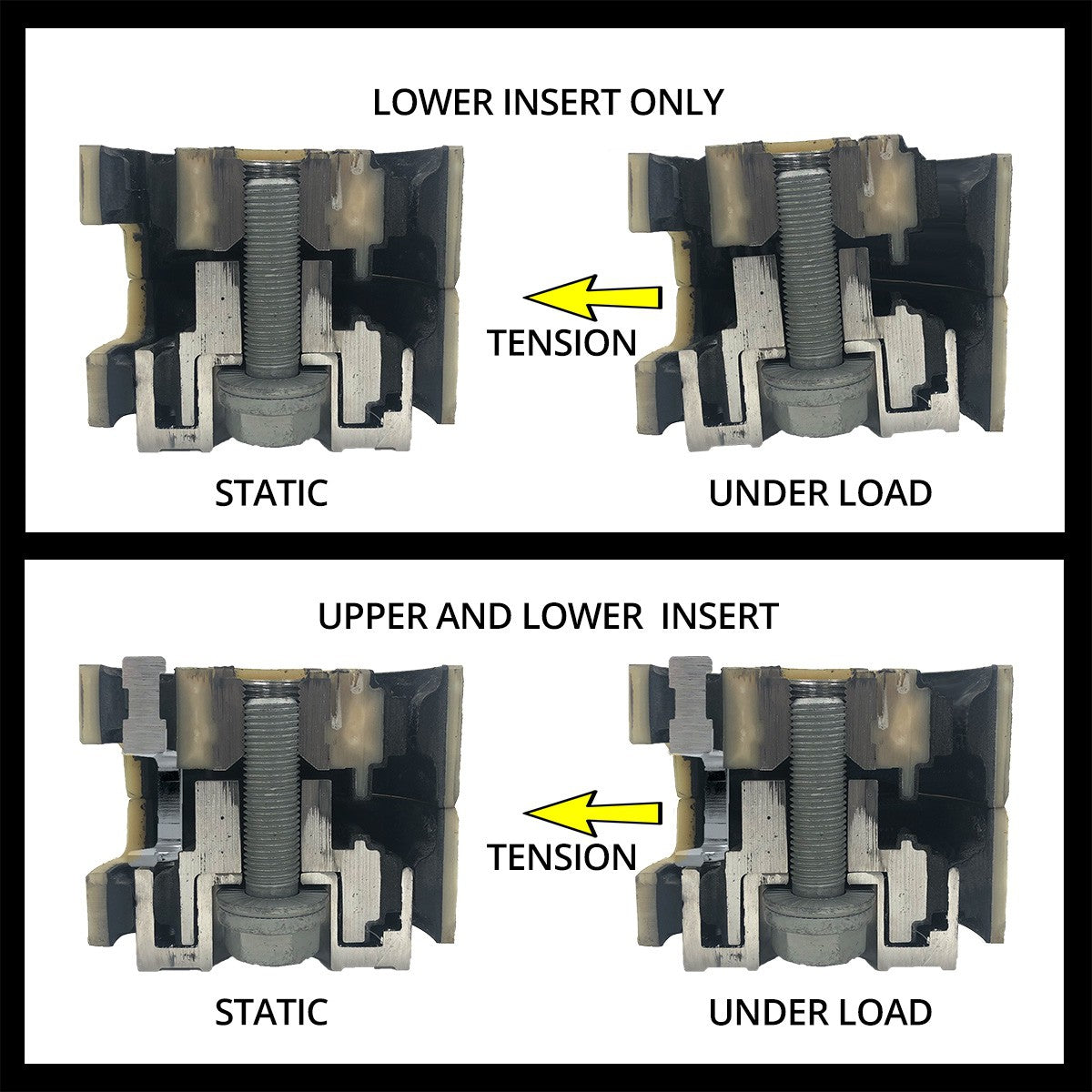

The 034Motorsport MQB Upper Dogbone Mount Insert (patent pending) is required for any MQB platform MkVII Volkswagen Golf/GTI/R, MkVII VW GLI, 8V/8V.5 Audi A3/S3/RS3 & MkIII Audi TT/TTS/TTRS using an aftermarket dogbone mount and lower dogbone mount insert. Aggressive driving that causes violent drivetrain movement, such as burn-outs and wheel-hop, will cause the upper and lower dogbone mount assembly to exert a bending moment on the dogbone mount arm, causing it to bend, and in some cases fail. When this failure occurs, the bottom of the engine is unconstrained and the engine will cause damage to other components in the engine bay. The 034Motorsport MQB Upper Dogbone Mount Insert eliminates these bending forces, allowing the dogbone mount to perform flawlessly during these violent events. An aftermarket billet spherical dogbone mount combined with a dogbone mount insert dramatically improves the feel and responsiveness of the drivetrain during spirited driving. However, this combination of modifications, coupled with the design constraints of the MQB dogbone mount pucks, have revealed a scenario that applies forces to the dogbone mount arm that it was not designed for. The lower dogbone mount insert limits compliance of the lower dogbone mount puck by filling large voids in the puck. During normal and spirited driving, this reduction in compliance results in more direct transitional response of the drivetrain to accelerative and decelerative forces. The driver feels more direct throttle response through the drivetrain without introducing a significant amount of NVH.
At ModsDirect, we love 034Motorsport parts and use it on our in-house vehicles!
Full installation guide available here.
