Paragon Performance Rotor Rings 380mm x 34mm P.C.D. 223mm - D63.5

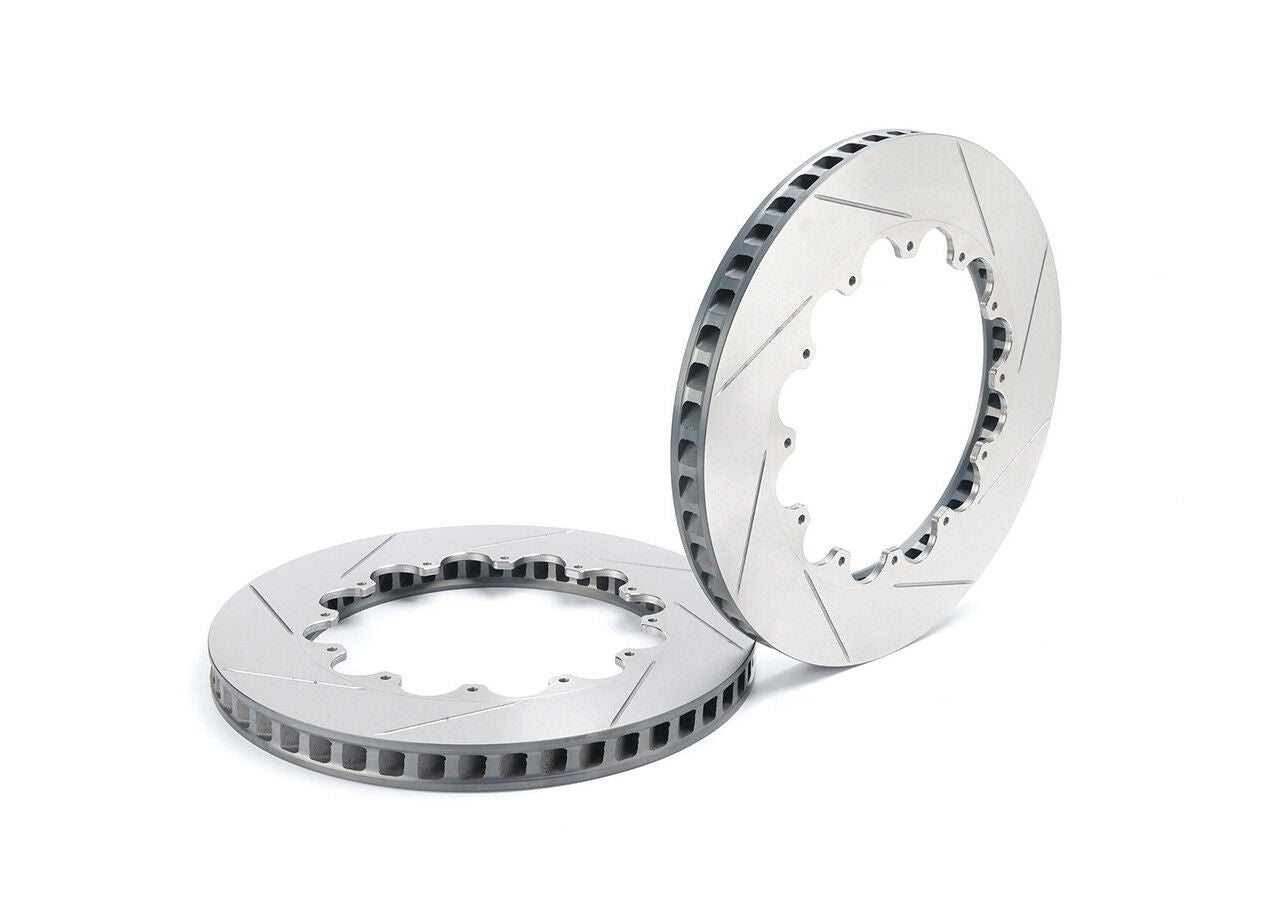

Paragon Performance Rotor Rings — 380mm x 34mm | P.C.D. 223mm | D63.5
Engineered for the demands of track and race environments, the Paragon Performance Rotor Ring delivers measurable gains in braking performance, thermal management, and fade resistance. Built to a specification that OEM rotors simply cannot match, this is the rotor ring for drivers who push hard and brake later.
Specifications
- Diameter: 380mm (14.96")
- Width: 34mm (1.34")
- P.C.D.: 223mm
- Hat Bore (D): 63.5mm
- SKU: PRR.8014.380.2450.340.22300.03.01.L/R
- Supplied: One pair (LH & RH) + detailed installation manual
Material & Construction
- Cast from CM-250 high carbon alloy cast iron — optimised for bite, thermal stability, and high-temperature strength
- Heat treated post-casting to relieve internal stress, preventing deformation and vibration under load
- Finished with state-of-the-art CBN surface machining for superior pad bed-in and consistent contact
- Lateral run-out held within 0.03mm; rotor balance variation within 2 grams
- Weighs less than most OEM equivalents while maintaining full thermal capacity — reducing unsprung mass for improved handling
Performance Features
- Directional ventilation vanes create suction and turbulence to actively draw cool air through the rotor — runs up to 30% cooler than OEM
- Floating 2-piece design allows thermal expansion without deformation, keeping the rotor self-centred against the pads at all times
- Slotted rotor face maintains a clean pad contact surface, dissipates heat and gases, and provides a decisive advantage in wet conditions by eliminating water film between pad and rotor
- Minimises brake fade and judder during extended track sessions
- Rigorous QC inspection on every unit before dispatch
Direct Replacement
This rotor ring is a direct replacement for:
- Alcon part # DIV2202X905
Why Paragon Performance?
- ✅ Manufactured to motorsport-grade tolerances with rigorous multi-stage quality control
- ✅ CM-250 high carbon alloy construction — proven in track and race applications worldwide
- ✅ Trusted by tuners and race teams demanding consistent, repeatable braking performance
- ✅ Floating 2-piece design for bolt-on fitment — no cutting, drilling, or fabrication required
- ✅ Slotted and directionally vaned for superior wet and dry performance across all conditions
